Description Of The Doppler Effect Microwave Sensor Radar Module M10
This product is automatic induction control of doppler radar products.High sensitivity, long distance detect, high reliability, big detect angle. Also the power supply voltage is range.It is widely used in all kinds of human body induction lighting, anti-theft alarm situations.
HW - M10 USES planar antenna is the transmission and reception, as the active sensor. The sensor transmit high frequency electromagnetic wave (10.525 GHz) and receive echo. HW - M10 detecting changes in the echo inside even small movement. Then microprocessor triggers, executes instruction . Signal can be detected through glass, doors or thin wall.
Features Of The Doppler Effect Microwave Sensor Radar Module M10
1.Strong anti-interference ability, stable performance, not influenced by environmental temperature.
2 .Small size, simple installation. Quick response and high sensitivity.
3. Induction distance can also customize, the detection angle is 180 x 360
4 .Radar wave can penetrate non-metallic objects, such as wood, glass, plastic, fabric, etc
Specification Of The Doppler Effect Microwave Sensor Radar Module M10
| Name | Microwave Sensor Module |
| P/N | HW-M10 |
| Supply voltage | DC 12V (6-22V) |
| Current | <1mA |
| Level of output | High-5/low-0V |
| Trigger way | Repeat(default) |
| Delay time | default 3 s (3-200 s adjustable) |
| Blocking time | The default 0 s (adjustable) |
| Size | 30*20*6mm |
| Distance | 1-30m |
| Angle | 180*360 |
| Working temp | -20 - +80 C |
| Transmission power | <2mW |
| Load power | 1.By adding relay as a trigger signal. 2.Maximum power 1000w |
| Install way | Hanging install, such as install suction a top;T8 is built |
| Universal model | HW8002,HW8003,HW1004,HW1005,HW8090,HW-IR02,HW-IR05,HW-M10,HW-M10-2,HW-M10-1,HW-M09,HW-M09S,HW-M09-2,HW-MS01,HW-MS03,HW-MS07,HW-N9MW,HW-MD6,HW-M21,HW-HB100,HW-XC509,HW-XC508,HW-MD6 |
Warm note:
1, Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an
electric shock.
2, Avoid installed in the hot sun rain, to prevent damage or affect the lifetime. 3: Better install far away from the place of the magnetic field or the conductor to avoid wrong actions
As following is the adjustment version of time and distance
| Resistor(ohm) | Distance(m) |
| 3M | 30 |
| 2M | 20 |
| 1M | 15 |
| 820K | 10 |
| 750k | 8 |
| Resistor(ohm) | Time(s) |
| 2.2K | 1 sec |
| 10K | 5 sec |
| 100K | 30 sec |
| 330K | 60 sec |
The difference between infrared and microwave sensor
| Item | PIR sensor | Microwave sensor | Note |
| Sensor object | Moving human or warm-blooded animals | Moving object | |
| Installation method | The lens needs to be exposed and cannot be blocked by any object. | Installed inside the product, it can penetrate the housing. Except metal material. | Need to be installed on a stationary object. |
| Ambient temperature | When the ambient temperature and the product temperature reach above 36°C, the sensing distance will decrease by about 30% | no effect | Operating temperature -20-+70°C |
| Induction direction | Transverse sensor sensitivity is good. Moves directly toward or away from the sensor, the sensitivity is slightly worse | no effect | Based on sensing surface |
| Strain factor | 1 hot and cold air convection, wind. 2 power fluctuations 3 Electromagnetic, high frequency signals | 1 multiple microwave modules in the induction area 2 power fluctuations 3 electromagnetic high frequency signal | |
| Induction angle | Determined by the lens, default 120° | Small space 360°, Large space: 135° | |
| Working power | Less than 50UA, available battery. | 3MA, need to use power. | |
| Installation Environment | 1.Indoor: Avoid installing near window openings, air conditioning vents, vents, and heat sources. 2 Outdoor: Try to prevent rain and direct sunlight. | 1 Indoor: Avoid installation near high frequency, electromagnetic and vibration objects 2 Outdoor: In an open area, the distance will be attenuated. | |

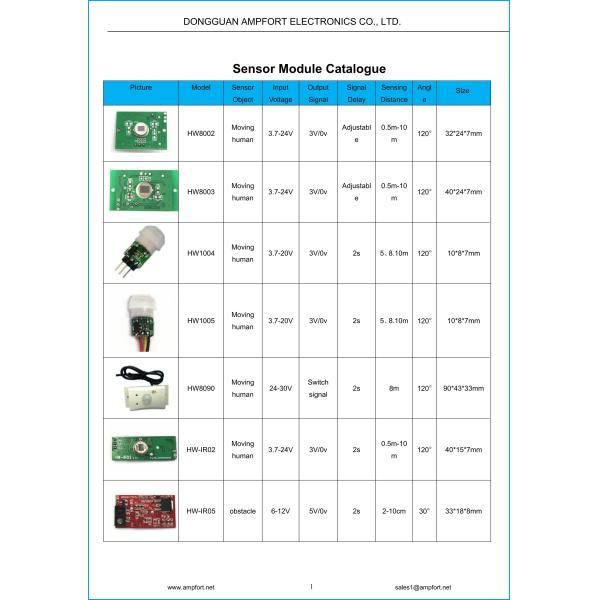

Sensor Module Catalogue Of The Doppler Effect Microwave Sensor Radar Module M10
